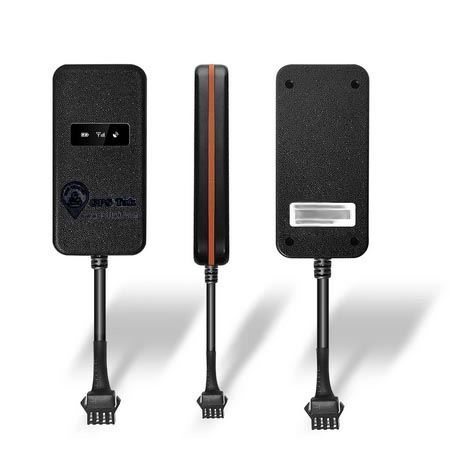

GpsTak Type C is a Mini intelligent GPS Vehicle positioning terminal. It combines the GSM wireless communication technology and GPS positioning system technology,terminals using industrial-grade highly integrated design,intelligent power-saving and passive drift suppression,installation is simple,connect the power supply to start work immediately,wide inpute voltage range,wide applicable to all types of cars,motor cycles,electric cars,ships,etc., can provide all-weather,real-time vehicle positioning function,with global positioning service platform,you can achieve remote vehicle management.

Battery inside for wire-cut alarm

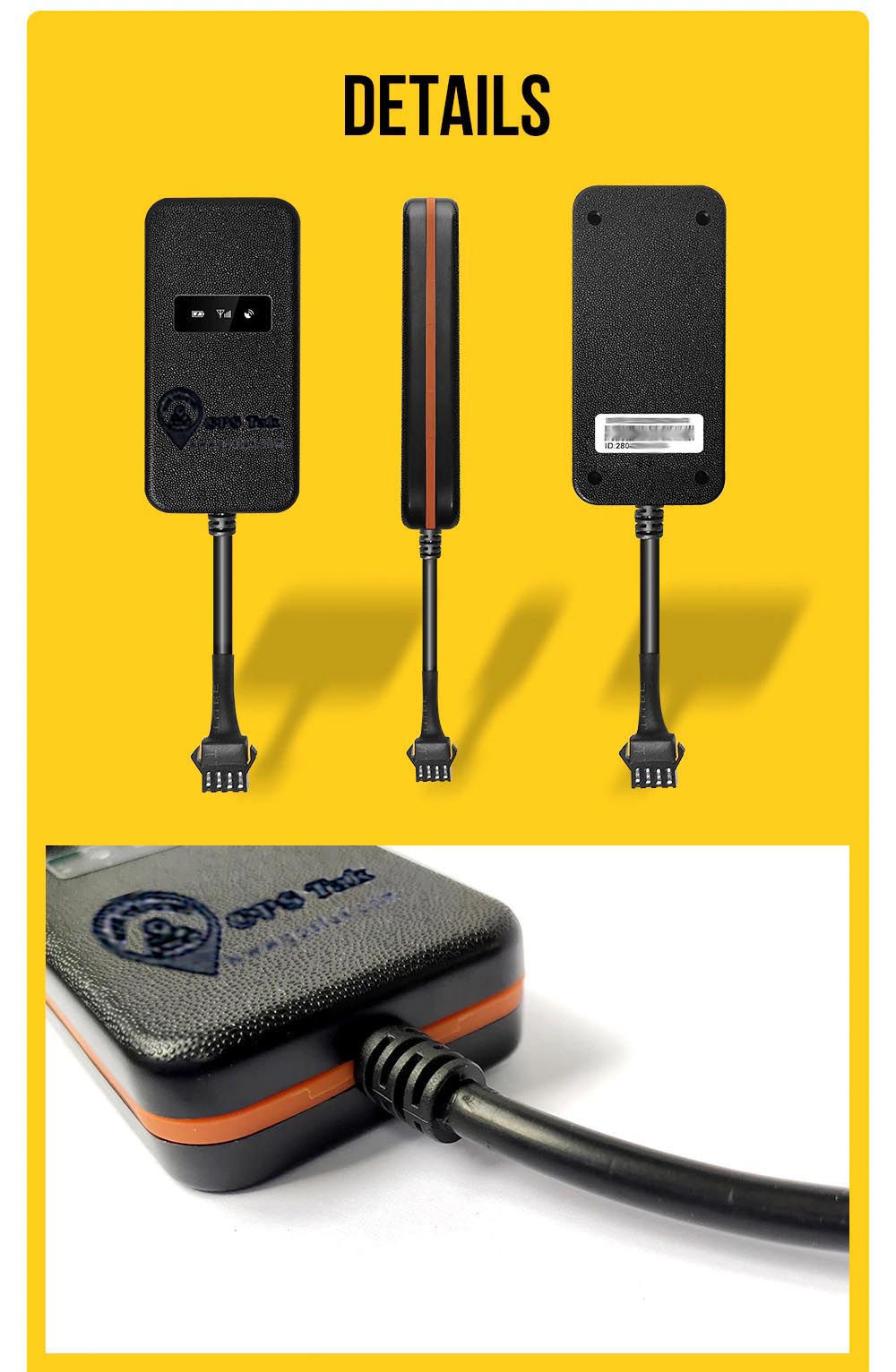

Device feature

Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or Data.

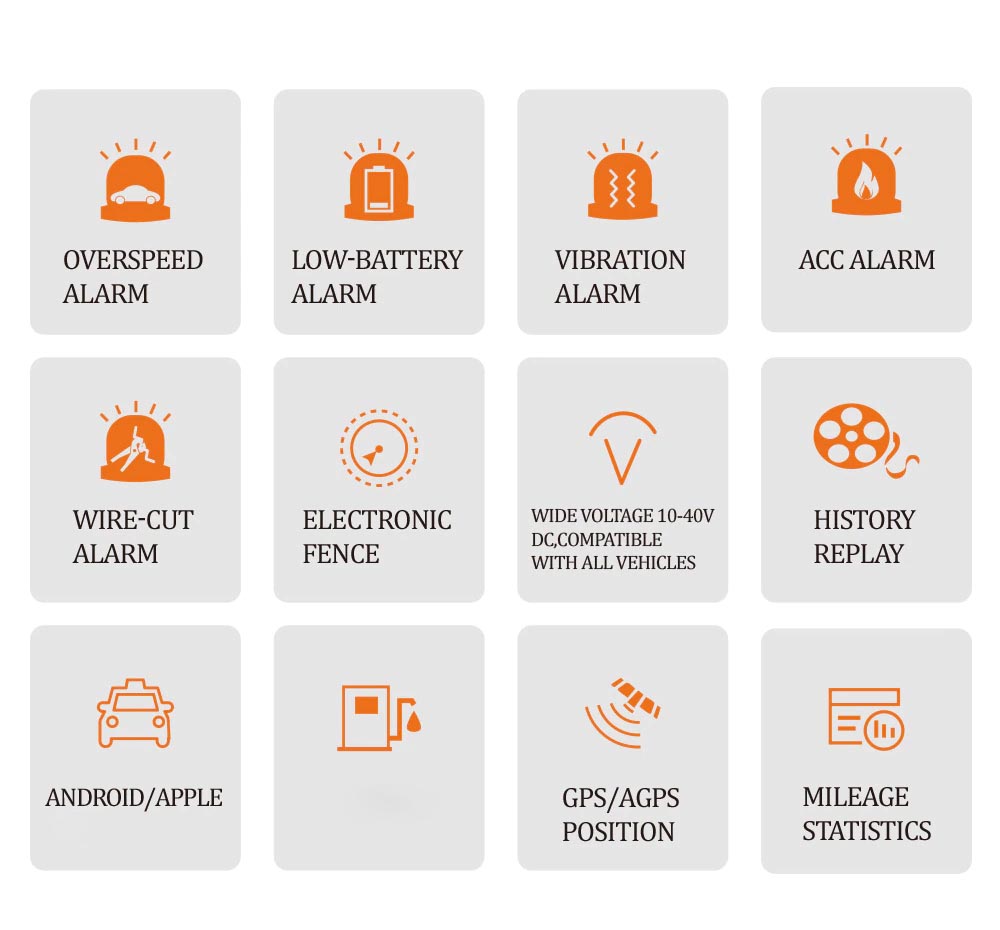

Overview of the characteristics:

1.GPS position.

2.GSM 850/900/1800/1900MHZ.

3.G-sensor inside,saving power and GPRS flow.

4.Auto set APN.

5.Voltage 10V-40V.

6.ACC status.

 Specification

1).GSM:850/900/1800/1900MHZ

2).GPRS: Class12, TCP/IP

3).Working Voltage:10-40V DC

4).Working current:22mA (12VDC)

5).Working current:12mA (24VDC)

6).GPS locating time:

Cold start:38s(Open sky)

Warm start:32s

Hot start:2s(Open sky)

7).GPS Precision:10m(2D RM)

8).Working temperature:-20Celsius~+70Celsius

9).Working humidity:20%~80%RH

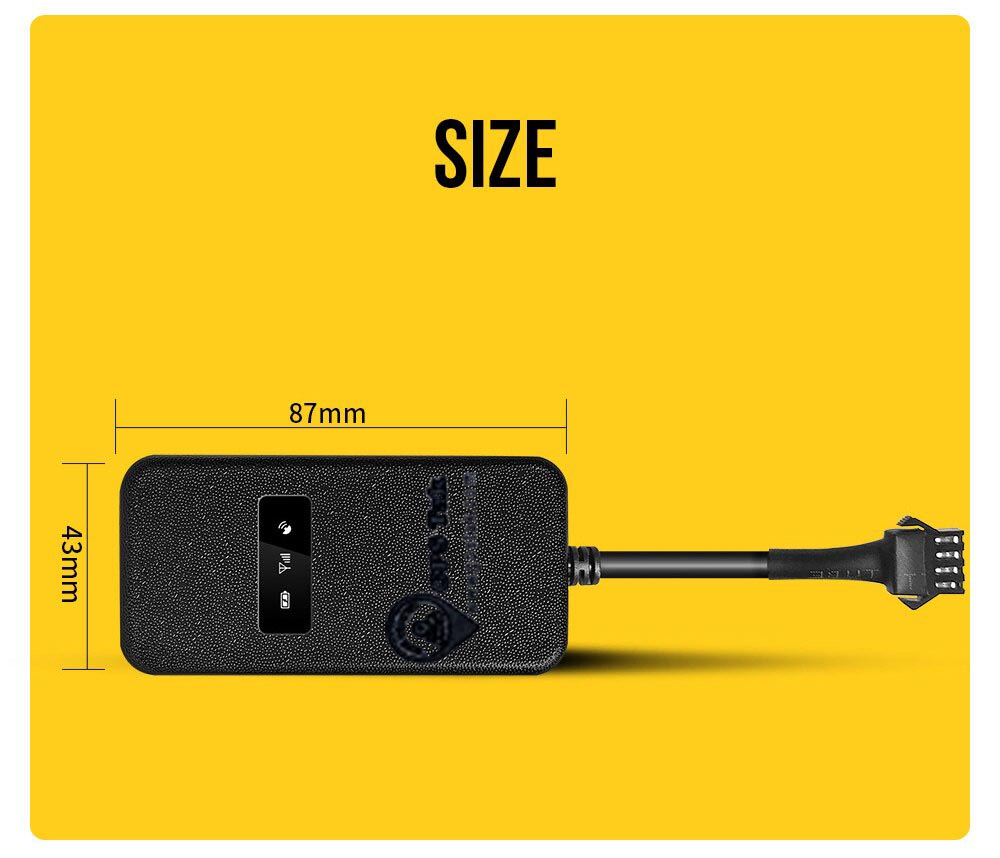

10).Measurement:87(L)×43(W)×14(H)mm
